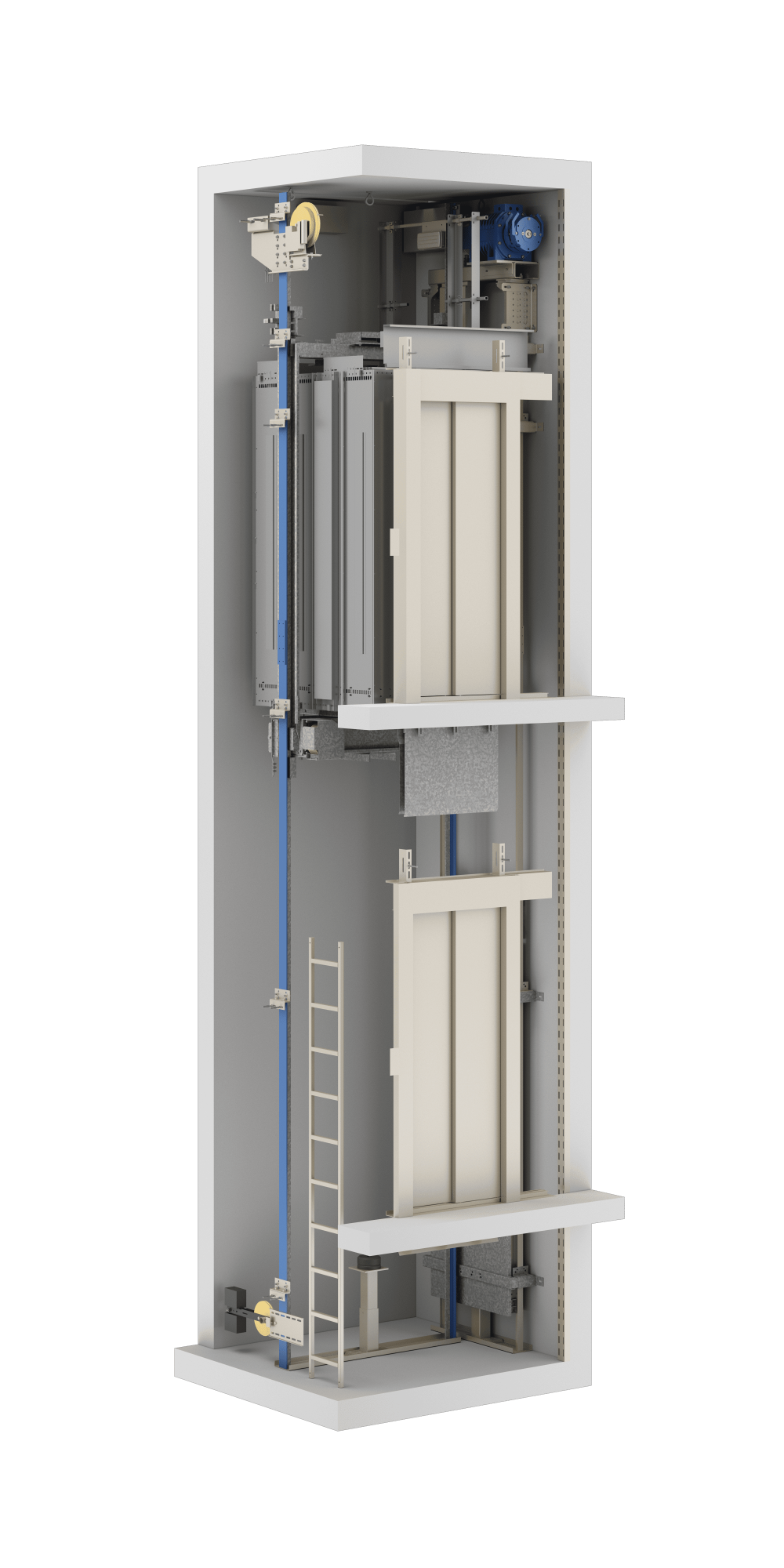

ATLAS RL SP

Atlas RL SP provides a practical traction MRL option for commercial and public buildings. Designed to serve rated loads of up to 1000kg, Atlas RL SP can be adapted to accommodate your specific lift requirements, including specialist anti-vandal, firefighting and earthquake resistant lift solutions.

Atlas RL SP guarantees outstanding performance and exceptionally low energy consumption. The additional feature of Destination Control ensures passenger waiting times are significantly reduced.

Product

Advantages

Stopping accuracy
Minimum vibrations
Emergency evacuation
Spatial efficiency
Extra safety features
Safe door closing

Specifications

Rated load (Kg)	400-1000
Suspension	2:1
Machine room	MRL (MR)
Max rated speed (m/s)	1.0/1.75
Min pit depth (mm)	for v≤ 1.0m/s 1150 for v≤ 1.75m/s 1300
Min clear headroom (mm)	for v≤1.0 m/s 3400 for v≤1.75m/s 3650 for v≤1.0 m/s 3800 for v≤1.75m/s 4065
Max entrances (mm)	2 (Through)
Panoramic option	Yes
Type of Machine	KLEEMANN RN
Ropes	Φ8
Directives & standards	EN81-1/EN81.20
